SQL Server

SQL Server is Microsoft's relational database engine. In Gredit, this integration allows connecting to a SQL Server instance to execute SQL queries from scripts via ODBC using the FreeTDS driver.

What it is used for

Configure a SQL Server connection so that scripts can execute SQL queries and read or write data in a Microsoft relational database.

Configuration

Required data

Field	Description
Host	SQL Server address (IP or hostname)
Database	Database name
Port	Connection port (default: 1433)
Username	Connection user
Password	User password
TDS_Version	TDS protocol version (must be 7.4)
Trace	Trace enablement (must be no)

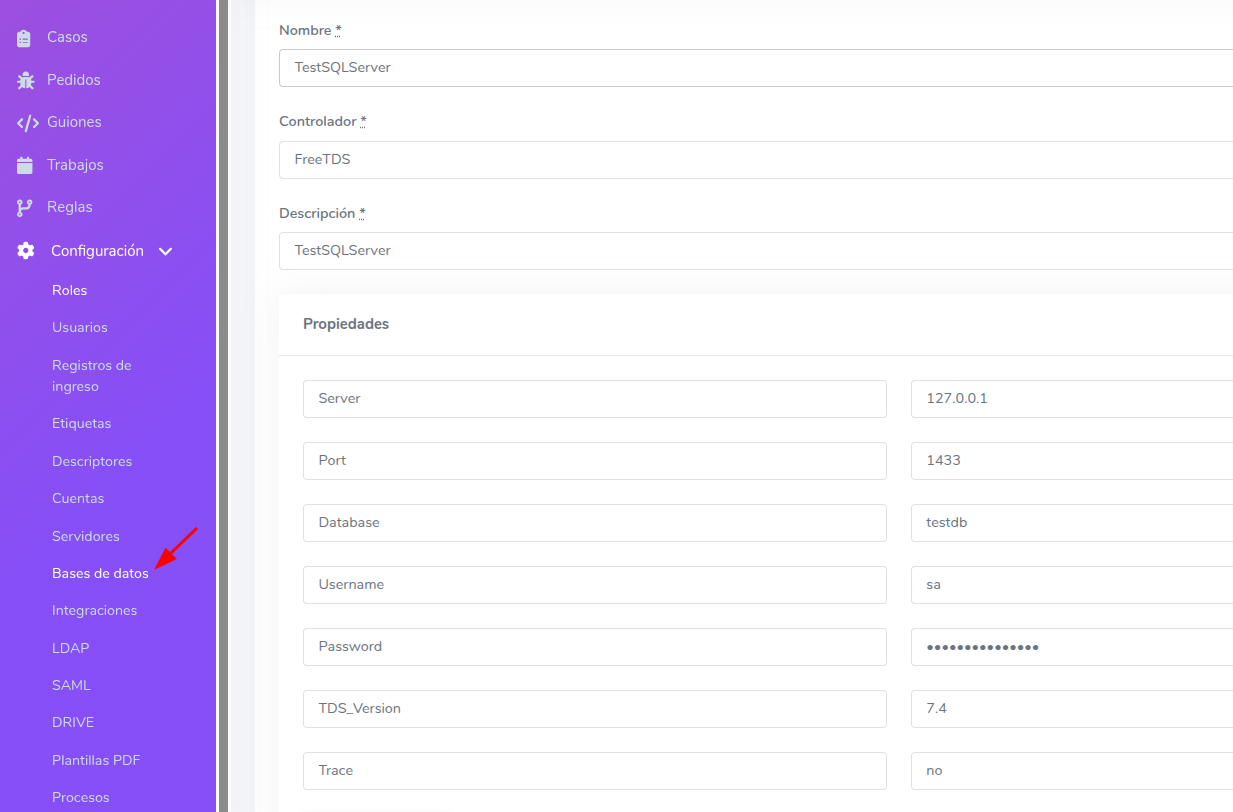

Adding the database in Gredit

1. Go to the Databases section and create a new configuration.
2. Fill in the host, database, port, username, and password.
3. In Driver, use FreeTDS.
4. In Properties, add the attribute TDS_Version with the value 7.4.
5. In Properties, add the attribute Trace with the value no.
6. The Name value will be the identifier used to inject the connection into scripts.

Usage in scripts

Ruby

require 'odbc_utf8'

con = ODBC.connect('TestSQLServer')
stmt = con.run('SELECT id, nombre FROM usuarios')

columns = stmt.columns.keys.map(&:to_s)

stmt.each do |row|
  h = columns.zip(row).to_h
  puts h['nombre'] || h['NOMBRE'] || h['Nombre']
end

stmt.drop
con.disconnect

Python

Add the pyodbc library under Libraries in the script settings.

import pyodbc

cnxn = gredit.connect('TestSQLServer')
cursor = cnxn.cursor()
cursor.execute("SELECT id, nombre FROM usuarios")

columns = [col[0].strip() for col in cursor.description]
rows = cursor.fetchall()

for r in rows:
    h = dict(zip(columns, r))
    print(h["nombre"])

cursor.close()
cnxn.close()

Relationship with other modules

• Accounts: The SQL Server connection belongs to an account.
• Scripts: Can be associated with one or more scripts optionally.
• Permissions: Controlled by assigned roles and permissions.
